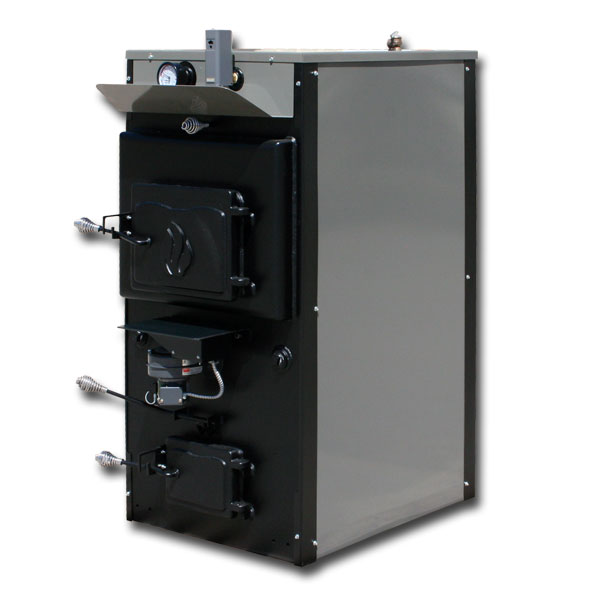

Our premium residential indoor wood boiler will heat homes under 2,500 sq feet in area with even, whole house comfort. Reliability that can keep you warm and comfortable no matter how cold it gets.
This boiler systems connects easily to any existing heating system you may already have in place, or as a supplement to an existing heating system.
Wood Boiler Specifications:
• 44" x 24" x 38.5" (HxWxD)
• 41.25" Flue Center To Ground
• 1/4" and 5/16" Steel Construction
• Quality Powder Coated Finish

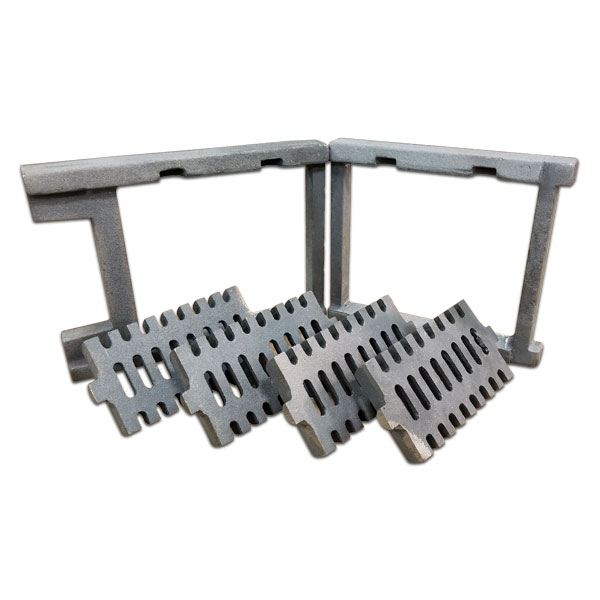

• (4) Rocker Grate System

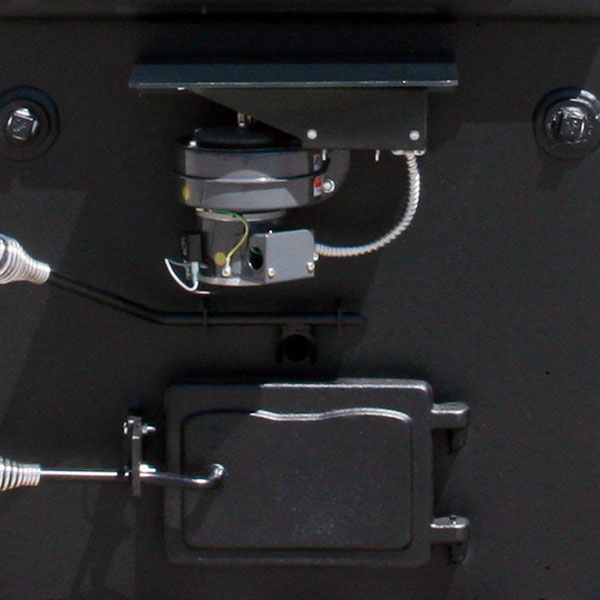

• 50 cfm Forced Draft Fan
• Auto Damper Shutoff

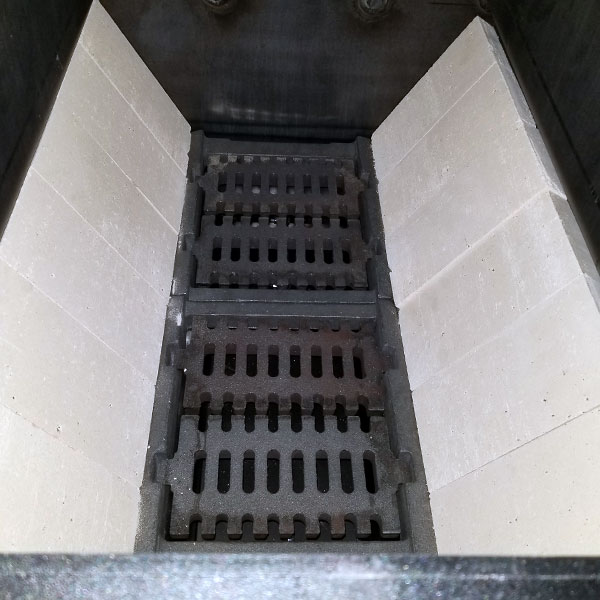

• 6.25 Cu ft Firebox Capacity
• 26 Gallon Water Capacity

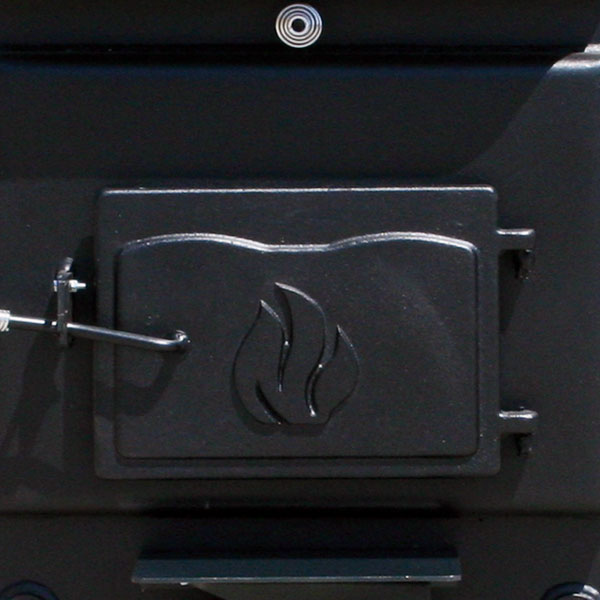

• 10" x 14" Fuel Door
• 5" x 7" Ash Removal Door
• 26" Log Length
• (8) 9"x4.5"x1.25" Firebricks
• 8" Collar, 6" Flue
• 1-1/4" FNPT Connections
• 780 lbs (approximate)
• Rated for UL391
Download The 6130 Wood Boiler Specification Sheet
Available Royall Wood Boiler Options:
• 6130 Grate Replacement Set
• 6130 Firebrick Replacement Set
• 6130 Gasket Replacement Set
• 50 cfm Auto Damper Replacement
• Single Zone Aquastat Replacement
